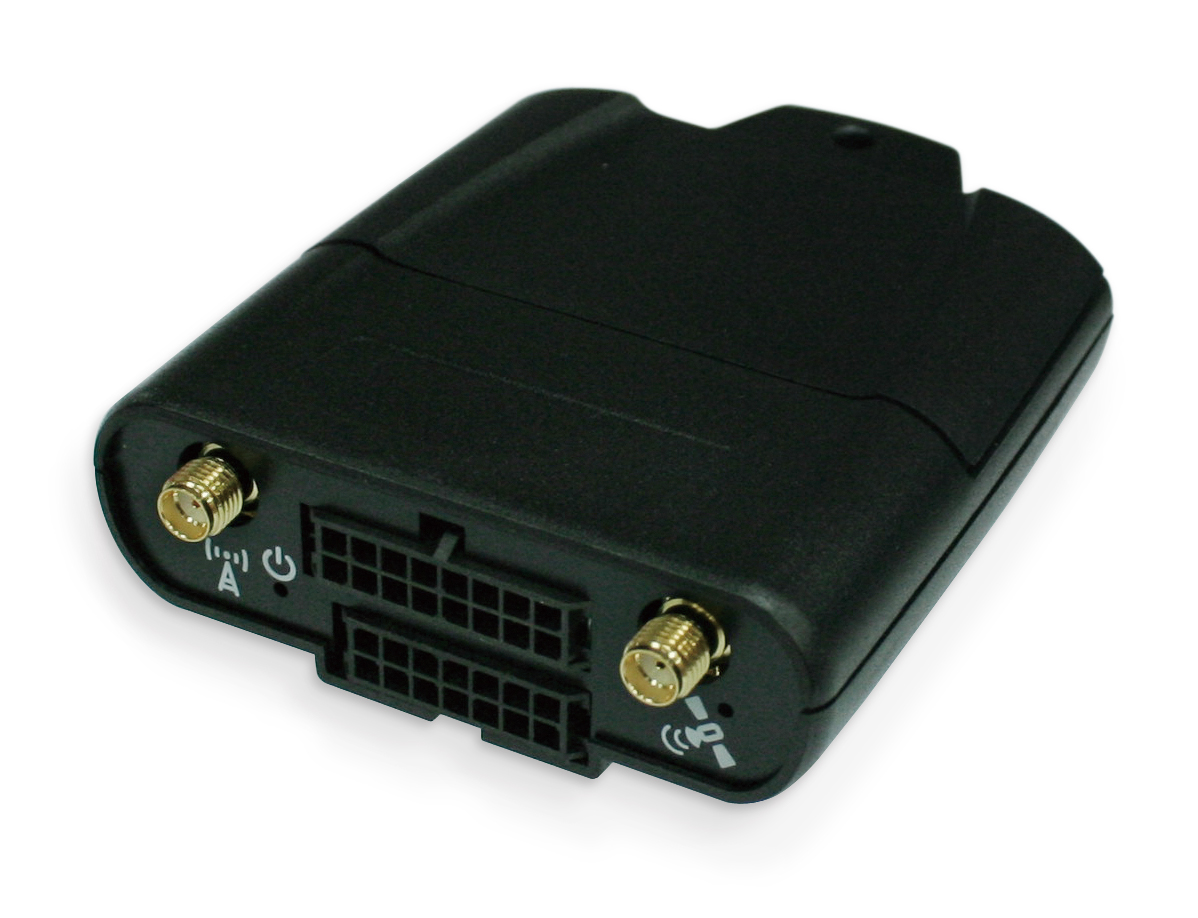

Vista 2G15
The Vista 2G15 is a highly intelligent device designed to fulfill your fleet management needs. Vista 2G15 integrates GPS and wireless communication technologies to connect with a base and send reports on position, state, and other situations/events predetermined by the user. Vista 2G15 has the ability of being configured to each client’s specific needs and is characterized by our easy to use array of capabilities that will simplify your fleet management challenges.

Vista 2G15 is suitable to be used in an extensive number of applications in the management of commercial fleets. The diversity of industries in which it can be deployed ranges from delivery and semi-trailer trucks, passenger transport, taxis, ambulances, insurance and security companies, etc. The applications are extensive, and so are its capabilities.
Status Indicators:
Power supply, GPS and GSM / GPRS
Dimensions:
72 mm x 95 mm x 25 mm
Weight:
100 grams (with battery & antennas)
Operating Voltage:
8 to 38 VCC
Operating Temperature Range:
-20°C to + 60°C
Humidity:
95% at 60°C

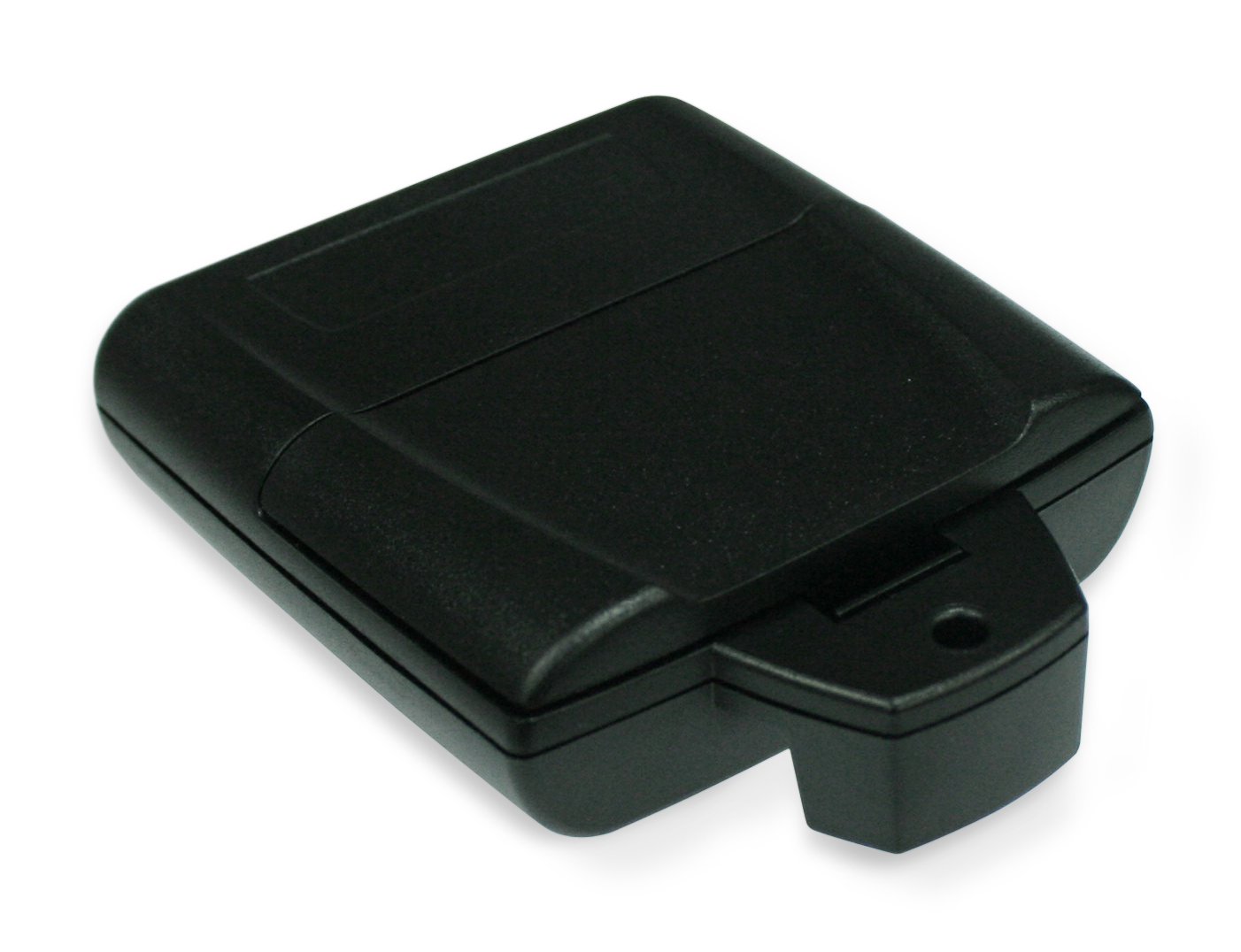

Case:
ABS (shock-resistant design)

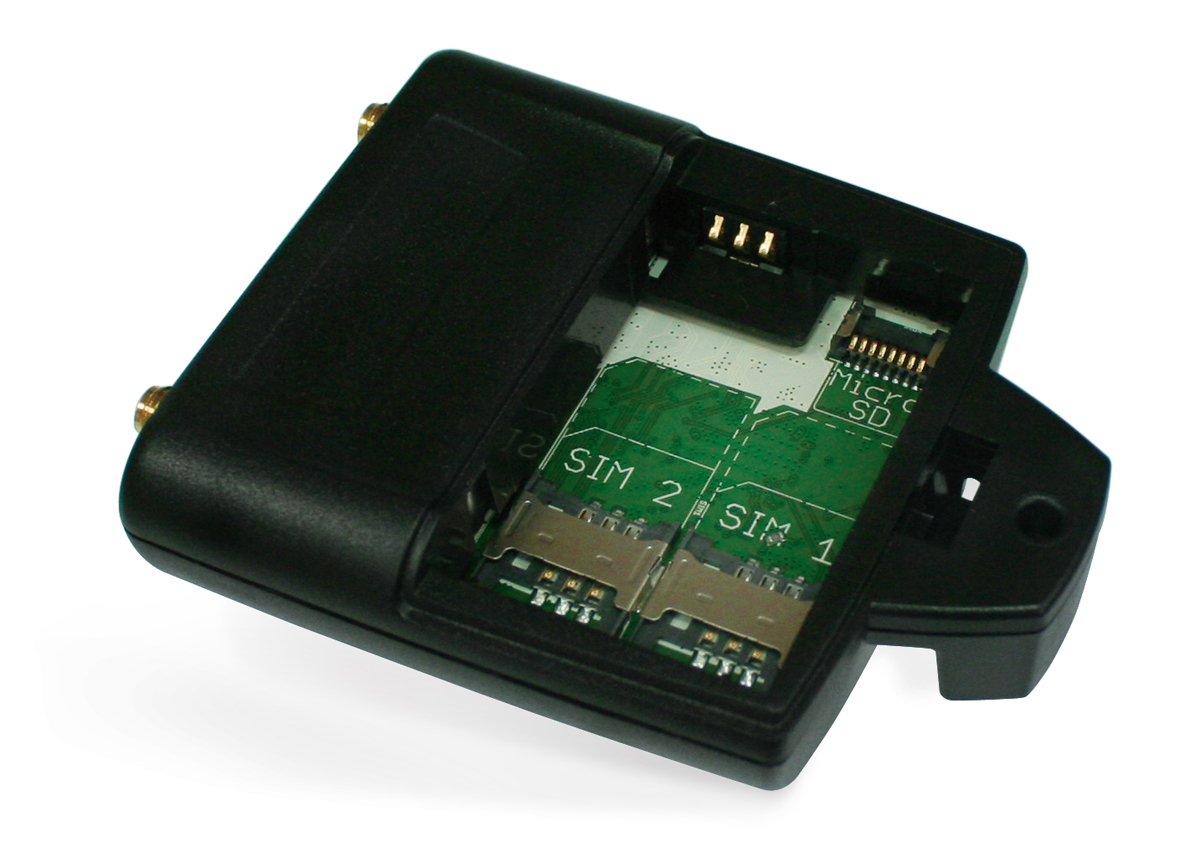

Dual SIM:
Selectable by internal command
8GB MicroSD Slot:
Save up to 5 years of information
Overview
Tech Specs
Accessories
Vista 2G15 allows you to comply with all expectations concerning functionality and reliability required by security and logistics applications nowadays. Its small dimensions and low power consumption level, along with powerful hardware, enable you to take advantage of the following characteristics:
Expand All
  • Multitasking Open Platform
    The concept that inspired the development of the new Vista 2G15 was the flexibility that customers were asking for and the ability to tailor the system according to the needs of each client. Clients can take advantage of the hundreds of resources available within a multitasking operating system provided by a hardware-based platform composed of multiple peripherals and/or modules. This is a significant difference when talking about GPS fleet tracking solutions since most of the devices of this sort work in a predefined manner, are limited in scalability, and don't allow remote reconfiguration.
    Applications can be designed starting from the most basic to the most complex: telemetry, logistics, multiple connectivity, external/internal data transmission and acquisition, sending information and/or notices by SMS or email, etc. The only limit is the imagination of each customer.
  • Distributed Geopositioning
    Vista 2G15 is not dependent on a chipset or module responsible for managing GPS data as are similar devices; this is just an optional peripheral in the hardware platform. The Vista 2G15’s powerful algorithms allow position tracking using GSM cell information with an accuracy which, in many cases, exceeds the required needs.
  • Intended to be Connected
    The Vista 2G15 has 5 serial ports, a CAN port, and an I2C port; giving it the capability of a powerful computer providing vast integration possibilities with car and truck computers; connecting temperature measurement modules, i-Button module, GARMIN display and cameras.
  • Unification of Powers
    48 channel SiRF IV with Jammer Remover, Quad Band Telit Module with Jammer Detection and Python Script, CPU ARM Cortex™-M4 - 32bits. The combination of these powerful components gives the Vista 2G15 a unique position in the marketplace.
  • Flexibility
    The Vista 2G15 has a powerful programming language that allows you to perform mathematical and logical operations, even complex logical operations. If that isn’t enough, you can even program your own functions through Python with a 2MB program memory and 1.2MB RAM. “This is not your father’s GPS system.”
  • Storage Capacity
    One of the greatest advantages of this device is its VERY HIGH STORAGE CAPACITY of information. LOG memory for storage of a massive number of reports (45,000 reports); plus the option of adding an 8GB microSD memory card where images captured by means of video cameras can be stored. Save up to 5 years of second-to-second information.
  • Robustness and Reliability
    Vista 2G15 stands out among its competitors because it combines high quality components, state-of-the-art hardware design, extremely stable firmware, strict control of production process, scalable performance and compliance with the most demanding automotive standards. If you want a solution that will help pinpoint areas to reduce costs and improve your data collection capability, Vista 2G15 is the answer.
    You will have a reliable, flexible and competitively priced tracking and data collection system to help you cut costs, improve safety and efficiency.
  • Integrated Intelligence
    Vista 2G15 has the ability to assess situations and generate actions/reports in response to those situations. The device is highly intelligent and will report on any important information about your vehicles.
  • Connectivity
    Possesses multiprotocol support which gives you the ability to connect through different types of devices such as cellphones, digital satellite transceivers, and two-way radios.
    Vista 2G15 also has dual SIM configuration; giving you the option to switch between different phone providers or connect with ORBCOMM satellite modems or INMARSAT.
    Vista 2G15 allows you to be connected by different means and devices; giving you the ability to “see” your fleet at all times.
  • Communications Control
    Our system gives you the ability to configure the type and the means of communication between the Vista 2G15 and the base, as well as, the waiting intervals, time, duration, number of attempts, etc.
    You decide what is best for your operation and when and how the device communicates with your base.
  • Power Manager
    Enables the proper functioning of the device even when the vehicle’s engine is off, taking advantage of its low power mode.
    Whether the individual vehicles are ON or OFF, you can always have an “eye” on them.
  • Management and Logistics
    Vista 2G15 offers a complete and effective solution for analyzing, processing, and storing information related to the journey, state of the vehicle, and information about your drivers.
    It collects essential data needed for a better assessment of your fleet.
  • Messages Control
    Vista 2G15 has the built-in capability to send, receive, and manage text messages.
    Important information about position and other reports can be sent to 2 configurable SMS destinations.
  • Voice Calls
    It has the capacity to establish a phone connection for voice calls and the ability to automate this feature with others in the system.
  • Access Code
    This assures that the setup, programming, and the information stored in the equipment can only be accessed by authorized users.
    The access code increases the security of your system and information.
  • Authenticity of Reports/Messages Sent
    The Vista 2G15 is equipped with the capability of issuing a digital signature to each message sent in order to establish the authenticity of those packets. This feature, if enabled, eliminates the possibility of receiving incorrect or malicious data within the global network packets.
    You can rest assured the information being reported is authentic.
  • Digital Inputs and Outputs
    Vista 2G15 has digital inputs for connection of various sensors or keys that can be used to trigger events. At the same time, the digital outputs can be configured for the management of power of devices such as sirens, locked doors, relays etc.
  • Analog Inputs
    Two inputs can be used for processing analog signals. For example: sensors, resistive ties, etc. You can set permitted range windows to analyze their states.
  • 3-Axis Motion Sensor
    Allows you to detect any alterations in position and/or vibration even while the engine is OFF (whether it be that it is being towed or has started to shift). Even in low power mode, a report could be sent to the base.
  • Detection and Condition of GSM Cells
    It is useful to be able to know the status of the GSM cells with which the device is interacting. In many cases, the position could be obtained based on an estimation of the position of the main cell as well as the neighbouring cells.
  • Garmin Fleet-Management
    We have the ability to integrate the interface and control messages offered by the Garmin products into our platform.
  • Geographical Grids
    The ability of the Vista 2G15 to process data and complex equations, as well as giving you exclusive control of a microSD memory and creating different partitions in it, allows for the processing of large maps (up to 4GB) with sections pre-set in real time. It not only supports 1 map; we incorporate the possibility of up to 2 (4GB) maps with GeoGrids (geographical grids).
  • BCM (Battery Charge Management)
    It is of the utmost importance for a device that works with batteries to have a proper charge/discharge manager in order to optimize the performance and avoid “stress” caused to the battery by trying to maintain a 100% charge. Causing battery stress will damage the battery to an extent to which it won’t be able to maintain a full charge. Our device has the possibility to configure power consumption according to the needs and/or performance level required; extending battery life.
Technical Specifications
Power Supply
8 to 38 VCC
Internal Backup Battery
Internal model Lithium-Ion Battery 1000mA
Power Supply Protections
Up to +100 VCC in continuous form
Up to -400 VCC in continuous form
Consumption
30-40 mA in active mode (24 VCC)
< 8 mA (turned-off GPS)
< 0.25 mA in total sleeping
(Kernel Enabled) mode
BCM (Battery Charge Management)
Yes (configurable)
Operating Temperature Range
-20°C to + 60°C
Humidity
95% at 60°C
Case
ABS
Dimensions
72 mm x 95 mm x 25 mm
Weight
100 grams
GPS Module
Sirf Star IV
48 channels
163dBm of sensibility
Less than 35 second cold start (average)
Position Accuracy: 10 meters
Speed Accuracy: 0.01 m/s
Time Accuracy: <500ns synchronized with the time of the GPS
GPS Antenna
Active 27 dB (5 mts. of cable)
Cellular Module
Quad Band GSM / GPRS
(GSM850, EGSM900, DCS1800, PCS1900)
GSM Antenna
Miniature QBAND
(Ultra-thin option, self-adhesive, 2.5 mts. of cable)
Dual SIM
Yes - selectable by means of internal command
MicroSD
Compatible with SDHC memory (Secure Digital High Capacity)
Status Indicators
3 (power supply, GPS and GSM / GPRS)
Serial Ports
5 (TTL)
3 Full Duplex (1200 to 115200 bps)
2 Only RX Configurable (1200 to 9600 bps)
Compatible with USB adapter
I2C Port
Connectivity with up to 10 different devices simultaneously
Detection of connection and disconnection of the detected devices
CAN Port
1 (Multi-Protocol and BAUD configurable up to 1 MBaud)
Digital Inputs
8
6 - protected up to 100 VCC
2 - configurable TTL
Analog Inputs
2 (0-40 VCC) (protected up to 100 VCC)
Inputs for RPM Measurement
1 (protected up to 100 VCC)
Outputs
4 OC NPN
(400 mA Max.)(non-volatile state)
3-Axis Motion Sensor
1 (sensibility adjustable)
Connectivity with Video Cameras
Up to 2 cameras simultaneously
Configurable Events
196
User-Configurable Reports
16
Peripheral Output Supply
Output voltage = 3V3
Maximum charge current = 300 mA
Overcharge protection
Overheating protection
Non-volatile activation status
User-Configurable Binary Reports
8 (up to 64 BYTE = 512 BIT)
User-Configurable Triggers/Comparators
100
Analog Windows
8
Abrupt Braking Triggers
4
Change of Course Triggers
8
Time and / or Distance Triggers
32
Time Control (date/time) Triggers
8
Speed Limit Triggers
8
RPM Limit Triggers
2
Incoming Call Detection (Caller ID) Triggers
8
Time Counters (seconds)
32
16 Bits General Use Counters
100 (0 to 65535) (84 non-volatile)
High-Range General Use Counters
100 (0 to 999999999) (84 non-volatile)
Pulse Counters
4 (0 to 4294967295.999)
(non-volatile, with 1/1000 resolution and configurable adjusting factor)
General-Purpose Status Flags
100 (84 non-volatile)
System Status Flags
More than 187
Geographical Reference Points (WayPoints)
100
Geographical Zones
32 (up to 32 point resolution per zone)
GSM Band Country Code Triggers (MCC)
8
Odometers
4- A AND B
2 total (resolution in meters)
2 partial (resolution in meters)
Filters to Capture CAN Packets
50
Filters to Capture CAN J1939 Packets
50
Integration with Maps on the WEB
Google map and Yahoo map
Dynamic Variables Assignment
Configuration of multiple assigned variables to different device parameters in the same command
Integration with GARMIN
Control of data packets for GARMIN fleet-management through FM command
General Use Records for Calculations
100 (84 non-volatile)
Configurable Printout Format
Supported Mathematical Operations :
= : Assign Value
+ : Addition
- : Subtraction
* : Multiplication
/ : Division
% : Module
A: Logic Operation AND
O: Logic Operation OR
X: Logic Operation XOR
Q: Square Root
^ : Power
Incoming Data Processing
20 totally configurable triggers
Binary texts or data incoming from any data port can be processed
Ex: Serial Ports (TR0, TR1, TR2, TR3 or TR4)
I2C port / GPS listener port / GSM modem listener
GeoGrids (Geographic Grids)
Can load up to two 4GB maps
Encrypted Report
PX Report with encryption key of up to 32 characters
Access Protection
Up to 8 character password
GPRS Connection Capability
2 configurable IP destinations
SMS Connection Capability
2 configurable destinations
Accelerometer
Configurable Sensibility (2G, 4G, and 8G)
Configuration and correction of position and orientation
Offset self-adjust
Analysis speed: 50 times per second
Sampling period: 20 milliseconds
Storage of the last 100 status reports, one every 1/10 of a second, equivalent to 10 secs running with peak maximum, minimum, and medium values.
12 configurable levels: 4 for X axis, 4 for Y axis, 4 for Z axis
26 related triggers
Connection/disconnection detection
Driver/ User Management
Information about:
Date and time of session
session duration
Idle engine timer
Running time
Distance travelled (resolution in meters)
Three general-purpose timers
Change in status
Possibility to load a list of up to 64 enabled codes
Configuration and Command Protocol
GAP (G ASCII Protocol)
Protection of Data Sent via GPRS
Evolutionary digital encryption (64 bit)
encrypted with 64 bit KEY (independent for IP0 and IP1)
DNS Name Resolution
Yes
“Jamming Detection” Reports
Yes
GSM Cells Status Reports
Yes
Number of Simultaneous GPRS Connections
5
Storage Capacity
LOG destination = 45056 reports
110592 reports (optional, to special order)
Automatic download in TR0, TR4, TR1,
IP0, IP1
SDM destination = up to 134217700 reports
Automatic download in TR0 , TR4, TR1 ,
IP0 or IP1
SDI destination = up to 524100 images
IP0 destination = 250 reports
IP1 destination = 40 reports
SM0 destination = 20 reports
SM1 destination = 20 reports
Memory of the last 320 sec. running
Buffer of 8 incoming text messages
Buffer of 8 outgoing text messages
Compatibility for Sending Commands and Messagesvia Satellite Modem
SkyWave (Inmarsat)
ORBCOMM
Firmware Update
Through serial port
GPRS vía OTA (over the air)
(redundant verification system)
Access to SIM Card Data
Yes
Processor
ARM Cortex™-M4 - 32 bit
Compatibility with:
TraxCAM video camera
Temperature measurement module
iButton module
CAN receiver / processor module
3-axis accelerometer module
Fuel consumption sensor in telemetric data mode
ORBCOMM DIGI-M10 satellite modem
GARMIN fleet-management interface
Download
i-Button Reader
- Driver ID reader/enabler for TRAX devices
- High resistance to rough handling
- Extended temperature range: -40°C to 85°C
- Electromagnetic discharge protection
- 64 bit inviolable unique code
Temperature Sensor
- Temperature sensor for cold storage
- Temperature range: -55° C to 125 °C
- Precision of: -10° C to 85° C ± 0.5 °C
- Multiple alarm configuration
- Factory calibration
- Surgical stainless steel sheath
- Extended temperature range silicone wire
Camera (Exterior)
- Color camera with 28 infrared LEDs for very low light
conditions.
- Designed for exteriors, protection IP66.
- Camera with the ability of adding a bracket on the top or
bottom part.
Amplified Speaker
- Power: 1W
- Voltage: 12 -24 V
- Input power supply / impedance: 8 ohm
- Operating temperature: -10ºC to 80ºC
GPS Antenna 27 dB
- Main frequency: 1575. 42MHz± 3 MHz
- VSWR 1.5:1
- Bandwidth: ± 5 MHz
- Impedance: 50 ohm
- Peak gain: 3dBiC
- Based on a 7x7 cm ground plane
- Polarization: RHCP
- LNA gain (without cable): 28dB
- Bandpass filter typical attenuation (f0=1575. 42 MHZ)
- 7dB Min f0+/-20MHZ;
- 20dB Min f0+/-50MHZ;
- 30dB Min f0+/-100MHZ
- VSWR: 2.0
- Consumption CC: 5mA, 10mA Max

Mechanic Specifications
- Weight: 110 grams
- Dimensions: 50mm × 39mm × 16mm
- Cable: RG174 (5 mts. or 3 mts.)
- Available connectors:
SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX
- Mounting: Magnetic base
- Color: Black
- Operating temperature: -45º C~+85º C
- Humidity: 95%~100% RH
- Water resistance: 100% resistant
Quad-Band GSM Antenna
- Small dimensions: 16mm x 110mm x 2mm
- MHz Frequency ranges: 824-894/1710-1990
- Bandwidth: 90/280
- VSWR: 1.5
- Gain without cable: 3.5 dBm
- Maximum output power: 60 W
- Input impedance: 50 ohm
- Polarization type: Vertical
- Cable length: 1000, 3000, 5000 mm
- Cable type: RG174
- Connector type: SMA Reverse /SMC
- Mounting: Adhesive
- Storage temperature: -45°C to +75°C
- Operating temperature -45°C to+75°C
USB Data Cable
- Programming cable for TRAX GPS devices
- Serial Port Emulation
- Compatible with Windows XP, Windows 2000 y Windows NT
Serial Data Cable
- Programming cable for TRAX GPS devices
